Led Screen Modular 75 inch Panels
Led Screen Modular 75 inch Panels
Regular price
$2,402.40 USD
Regular price
$0.00 USD
Sale price
$2,402.40 USD
Unit price
/
per
Led Panels Indoor Outdoor Screen Modular 75 inch Panels
P5 Indoor SMD2121 960x960mm Die-cast Fixed installation LED Panels For Video
Aluminum die-cast housing lease rental housing than the general advantages:
1. Light weight: per square box weighs only 24kg, single box weighs 8KG, single person can be a single hand, saving installation time;
2. Thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation, its thickness is only 80mm;
4. Disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly;
3. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic;
5. Easy maintenance: modular design, installation and removal easy assembly Screen anywhere, simple to maintain
6. High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz
7. Tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Box single, compatible with a variety of pitch, indoor-outdoor module compatibility
8. Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight, low installationcosts required; Low cabinet power consumption, saving operating costs.
1. Light weight: per square box weighs only 24kg, single box weighs 8KG, single person can be a single hand, saving installation time;
2. Thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation, its thickness is only 80mm;
4. Disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly;
3. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic;
5. Easy maintenance: modular design, installation and removal easy assembly Screen anywhere, simple to maintain
6. High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz
7. Tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Box single, compatible with a variety of pitch, indoor-outdoor module compatibility
8. Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight, low installationcosts required; Low cabinet power consumption, saving operating costs.
P5 Indoor 960x960MM(192*192pixel) LED Rental display panel with Linsn (Nova) Control System LED module:320X160mm (SMD2121 Kinglight 1920(ICN2038S) Hz) Density of pixel:40000 pixel/m2 Drive IC:ICN2038S Light type: Kinglight SMD2121
LED Cabinet
|
||||||||
Pixel Pitch
|
5mm
|
Pixel Configuration
|
SMD2121
|
|||||
Module Quantity in a Cabinet
|
3(L) * 6(H)
|
Cabinet Dimension
|
960(L)* 960(H)* 144(D)mm
|
|||||
Density
|
40,000 pixels/㎡
|
Cabinet Resolution
|
240(L) * 240(H)
|
|||||
Module Resolution
|
64pixel(L) *32pixel(H)
|
Cabinet Material
|
Die-Cast magnesium alloy
|
|||||
Module Dimension
|
320mm(L) * 160mm(H) * 18mm(D)
|
Module Mask
|
Pure black mask---high contrast screen
|
|||||
Driving Mode
|
Constant current, 1/16 duty
|
Cabinet Weight
|
24KG
|
|||||
Optical Ratings
|
||||||||
Brightness
|
≥1,000 cd/㎡
|
Best Viewing Distance
|
≥4m
|
|||||
Viewing Angle
|
120°(Horizontal); 120°(Vertical)
|
Brightness Adjustment
|
100 grades by software or automatically by sensor
|
|||||
Gray Grade
|
14 bits
|
Display Color
|
4.4 trillion Colors
|
|||||
Operation Power
|
AC100-240V 50-60Hz Switchable
|
Max. Power Consumption
|
680W/㎡
|
|||||
Avg. Power Consumption: 230W/㎡
|
||||||||
Control System
|
||||||||
Frame Frequency
|
≥60Hz
|
Color Temperature
|
5000—9300 adjustable
|
|||||
Input Signal
|
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
|
Support VGA Mode
|
800*600, 1024*768, 1280*1024, 1600*1200
|
|||||
Control Distance
|
100m(Ethernet cable);
20KM(optical fiber cable)
|
Brightness Correction
|
Pixel by pixel, module by module, cabinet by cabinet
|
|||||
Reliability
|
||||||||
Frame Frequency
|
≥60Hz
|
Color Temperature
|
5000—9300 adjustable
|
|||||
Input Signal
|
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
|
Support VGA Mode
|
800*600, 1024*768, 1280*1024, 1600*1200
|
|||||
Control Distance
|
100m(Ethernet cable);
20KM(optical fiber cable)
|
Brightness Correction
|
Pixel by pixel, module by module, cabinet by cabinet
|
|||||
Reliability
|
||||||||
Working Temperature
|
-20~+60 ºC
|
Storage Temperature
|
-30~+70 ºC
|
|||||
Working Humidity
|
10%~90% RH
|
Lifetime
|
100,000 hours
|
|||||
MTBF
|
5000 hours
|
Continuous Operating Time
|
≥72 hours
|
|||||
Protection Grade
|
IP31
|
Out-of-Control Pixel Rate
|
≤0.01%
|

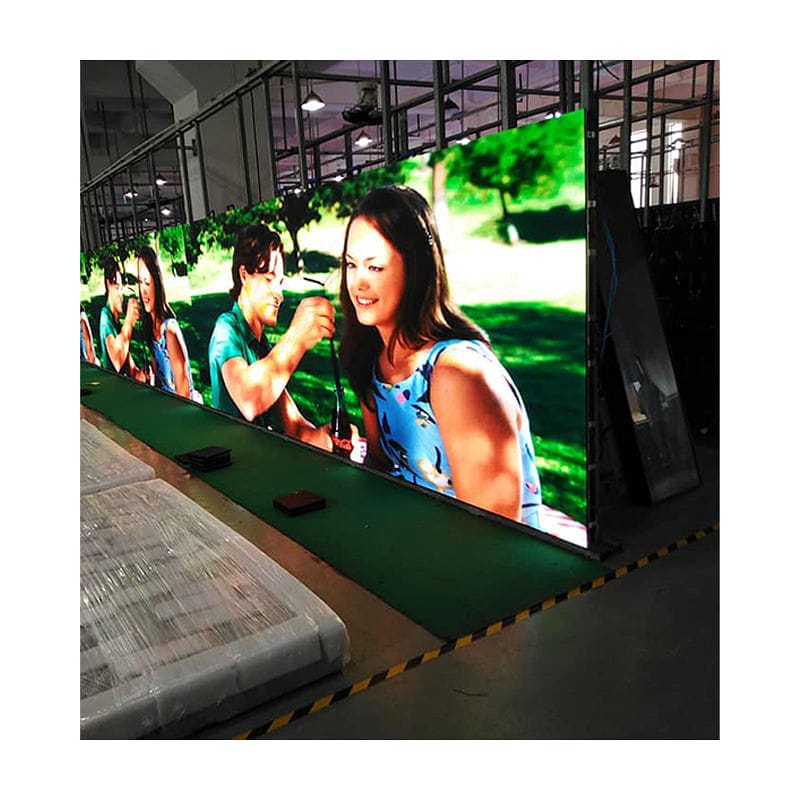

P5 Indoor 960x960mm Die casting Aluminium Cabinet RGB Full Color
192*192dots led Screen Video Wall Panel Display For Stage
Aluminum die-cast housing lease rental housing than the general advantages:
1. Light weight: per square box weighs only 24kg, single box weighs 8KG, single person can be a single hand, saving installation time;
2. Thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation, its thickness is only 80mm;
3. Disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly;
4. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic;
5. Easy maintenance: modular design, installation and removal easy assembly Screen anywhere, simple to maintain
6. High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz
7. Tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Boxsingle, compatible with a variety of pitch, indoor-outdoor module compatibility
8. Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight,low installationcosts required; Low cabinet power consumption, saving operating costs.
2. Thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation, its thickness is only 80mm;
3. Disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly;
4. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic;
5. Easy maintenance: modular design, installation and removal easy assembly Screen anywhere, simple to maintain
6. High gray high refresh rate design,gradation 14 bit,refresh rate above 960Hz
7. Tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Boxsingle, compatible with a variety of pitch, indoor-outdoor module compatibility
8. Low excellent thermal design and cooling performance, without an external fan, air conditioning, low noise; light box weight,low installationcosts required; Low cabinet power consumption, saving operating costs.
960x960mm P5 Indoor Die Casting Aluminium Equipment Cabinet Display
Smd Rgb Dot Matrix Rental Screen Video Wall
1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees.
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness difference is within 10%.
3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.
4) Different cabinet styles are available, such as fixed installation style, rental hanging style, ultra-thin style。
indoor Rental LED Screen
Indoor commercial LED screen
Indoor stage background LED curtain
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness difference is within 10%.
3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.
4) Different cabinet styles are available, such as fixed installation style, rental hanging style, ultra-thin style。
indoor Rental LED Screen
Indoor commercial LED screen
Indoor stage background LED curtain
FLY CASE / CARTON / WOOD CASE
MOQ: 1pcs die-casting aluminum cabinet screen.
Our package type:
Our package type:
wooden case and flight case (order above 4 pcs,easy to move with wheels, use for rental business,extra charge)
1. May I know the Minimum order for your products:
We have no limit for different size of the screen, but usually one screen’sdots are more than 50000 dots will be clear for the viewer to see the video on the screen.
2. WHAT IS THE INPUT FORMAT ON THE SENDING UNIT?
It is DV,HDMI,VGA,DP and multiple kinds of input signal.I. It can accept 1024X768, 1280X1024,1080P,2K,4K and 8K
3. WHAT IS THE DATE CONNECTION BETWEEN PANELS?
Each panels has 1 ethercon input and 1 ethercon output making connection between panels very simple.
4. HOW DO YOUR DISPLAY MOUNT?
BoTai has Our design team can help create frames and mounting specific to your installation.reated ways to mount all of our products to trussing, but we understand this isn't always the right solution for permanent install.
2. WHAT IS THE INPUT FORMAT ON THE SENDING UNIT?
It is DV,HDMI,VGA,DP and multiple kinds of input signal.I. It can accept 1024X768, 1280X1024,1080P,2K,4K and 8K
3. WHAT IS THE DATE CONNECTION BETWEEN PANELS?
Each panels has 1 ethercon input and 1 ethercon output making connection between panels very simple.
4. HOW DO YOUR DISPLAY MOUNT?
BoTai has Our design team can help create frames and mounting specific to your installation.reated ways to mount all of our products to trussing, but we understand this isn't always the right solution for permanent install.
